Elegance plus air and water tightness

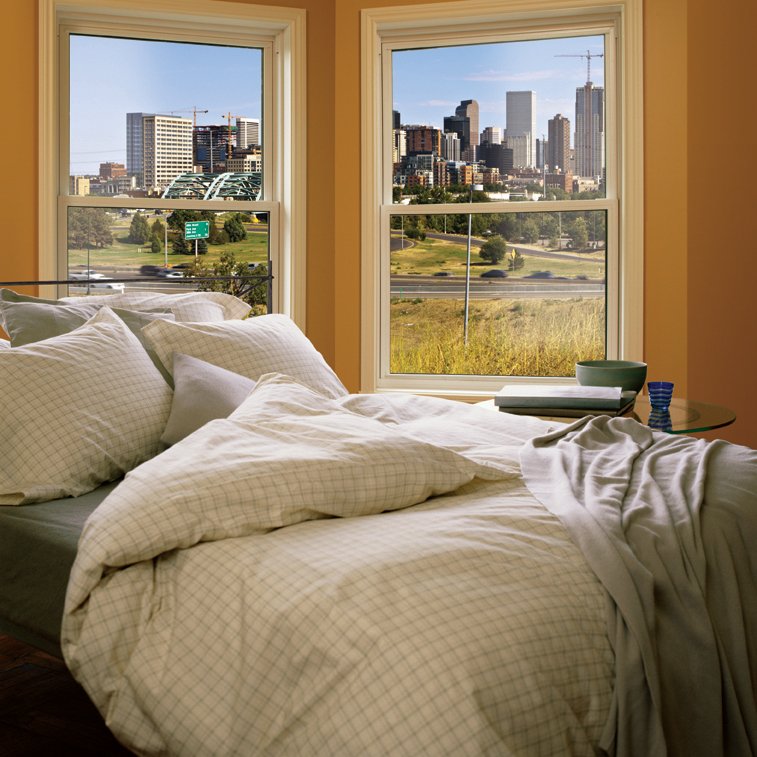

This traditional English style window is recognizable for its elegance and its air and water tightness. The PVC hung window has the best seal on the market. Whether a single or double hung, it is known for offering excellent ventilation and easy cleaning.

Options and features

Paint

Energy efficient glass

Simulated divided lites

Exterior finishing mouldings

Options and features

Specifications

4 ⁹⁄₁₆ inches deep PVC frame.
Sash corners and frame heat welded with high quality equipment. Contemporary or stylized sash available.
Our multi-chamber window design is one of the most energy efficient on the market, increasing rigidity and providing superior insulation and sound proofing.
Modular design windows for greater strength and stability that make the installation easier.
Our standard: double glazing at ⁷⁄₈ inch (22 mm) thick with Low-E window film, argon gas and a high performance warm edge spacer.
Quadruple weatherstripping system providing exceptional protection against air and water infiltration.
High quality security latches, locks and handles.
Fiberglass screen with an enameled aluminum overlap frame for one of the most elegant design.
Steel reinforcements installed in frames and shutters allow for the largest possible window dimensions in the contemporary model only and if required by dimensions.

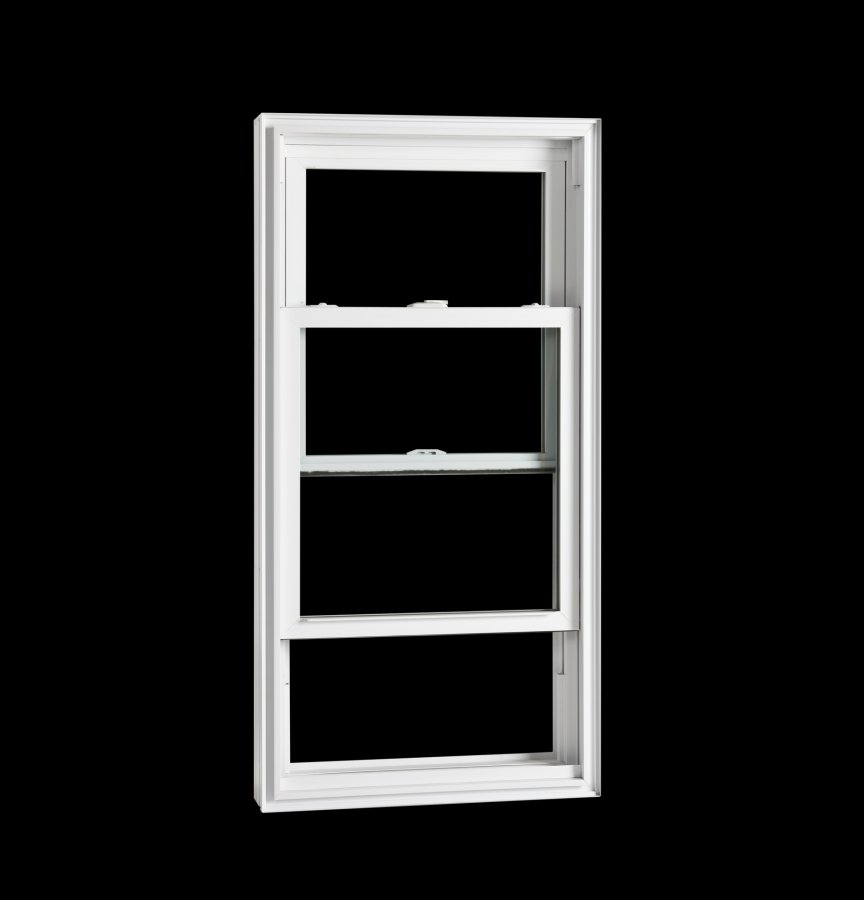

SINGLE HUNG

Single tilt
Half screen

DOUBLE HUNG

Double tilt
Full size screen or half screen

Paint

Colour, always fashionable...

As an option, our PVC windows are painted at our factory by a sophisticated and proven process. We apply two generous coats of high quality acrylic polyurethane paint offering unmatched resistance and luster.

At our factory, our colorists can do for you the colour of your choice, leaving free rein to your imagination.

322

Bright red

430

Pure white

502

Ivory

506

Smoke

508

Sand

514

Cashmere

523

Coal

525

Black

536

Graphite

538

Coffee

540

Vanilla

542

Ocean blue

547

Sandy

554

Waltnut-brown

556

Forest green

559

Khaki

562

Commercial brown

5P3

Expresso

5P5

Graphite

5P6

Iron ore

The colours may slightly vary; these are presented for reference purposes only.

Energy efficient glass

A superior energy performance!

In addition to the Energy Star® standard, which is used to assess the energy performance of your windows and doors, we also recommend that you consult the harmonized North American Fenestration Standard (NAFS), more commonly referred to as "structural performance testing".

The NAFS standard evaluates a window or door's resistance to climatic elements such as wind, as well as its air and water tightness.

In Canada, the minimum requirements of this standard are specified according to your locality, and are based precisely on your region's climatic conditions.

Before purchasing your product, we strongly suggest that you validate the minimum performance category (PC) required by both your geographical location and the immediate surroundings of your home (location, product height, type of terrain, etc.).

Find your minimum PC easily with Fenestration Canada's Performance Calculator.

COMBINING AN INNOVATIVE GLASS UNIT AND AN ULTRA-EFFICIENT SPACER

To reduce energy consumption, Martin uses as standard energy efficient Low-E glass (4.2) with Argon gas combined to an air-tight spacer. Many of our products are ENERGY STAR® approved.

ADVANTAGES

Reduces heat loss in winter
Keeps the interior cooler in the summer
Reduces heating and air conditioning costs between 5% and 15%
Prevents textile surfaces discoloration
Helps to keep a balanced humidity level in the house
Reduces condensation risks on the glass surface

INSULATING GLASS

The Sungate^® 400 Low-E and argon energy efficient glass unit increases your comfort in many ways. This superior quality glass keeps you warm during winter’s cold nights and cool during the hot summer days. While allowing in the benefits of natural light, it also ensures a high level of energy efficiency.

SPACER

The best warm edge spacer in the world:
Swisspacer Ultimate
It has the best thermal value in the world with a 20% reduction in thermal conductivity compared to the best product currently available on the market.

Simulated divided lites

For a distinctive style and a very special design, add wood or aluminum simulated divided lites on both sides of your sealed units. Our contemporary and traditional models will be a wonderful complement to your products specially crafted according to your personal choice of sizes and configurations.

SIMULATED DIVIDED LITES (SDL)

For a distinctive style and a special design, add PVC SDL on both sides of your sealed units (with or without spacer).

MODELS

• 1 ¹/₂ and ³/₄ inch PVC made

GRILLES

Personalize your windows with a variety of models and colours of grilles inside the sealed glass unit.

Tubular:		White, Brass, Pewter, Grey, Black
Georgian:	⁵/₈ inch	White, Ivory, Brown, Sand, Pewter, Brass
	1 inch	White
Rectangular:	1 inch	White
	⁵/₈ inch	White, Ivory, Brown, Pewter
