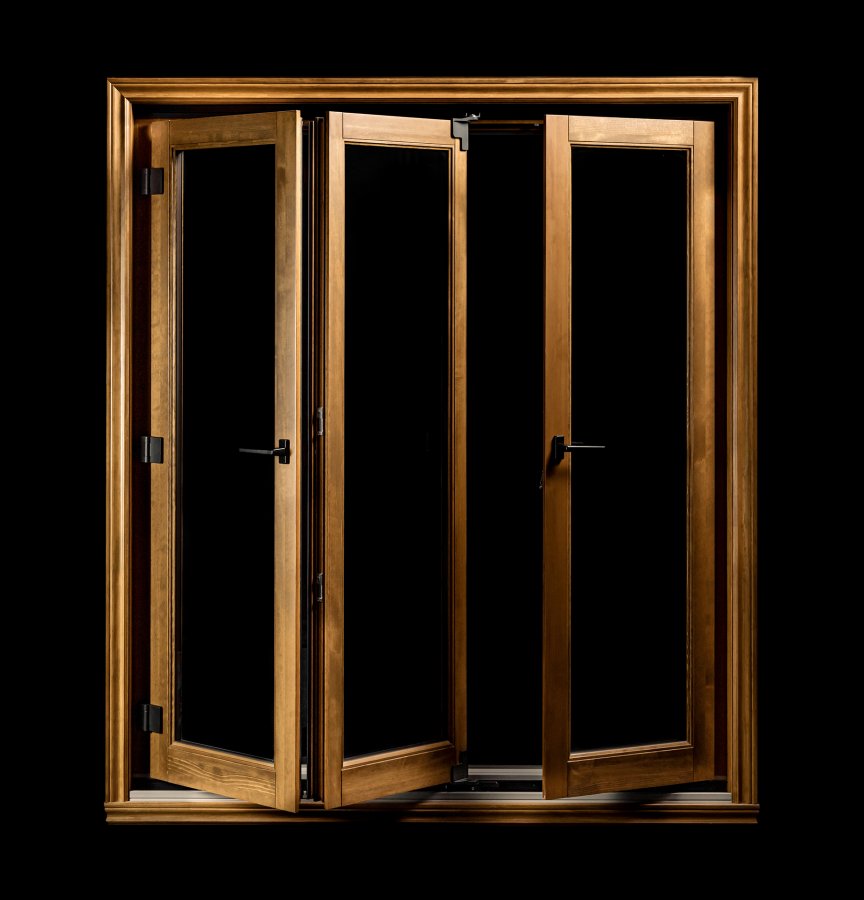

Folding door

One majestic door: a thousand possibilities!

Martin’s folding door combines innovation, uniqueness and nobility. In addition to its numerous aesthetic qualities, this model will surely surprise you in terms of air and water tightness as well as robustness. Its countless possible configurations will allow you to add up to 7 panels so that you can reach your desired length. It provides an original alternative for your backyard, your garden or your bistro area at home!

Options and features
Configurations
Aluminum cladding
Stain colours
Door sill
Energy efficient glass
Simulated divided lites
Mouldings
Hardware
Performance
Glazing

Options and features

Specifications

  • Solid 6 5⁄8 inches finger-jointed pine frame assembled with screws.
  • 1 1⁄16 inch thick frame.
  • Secondary frame 2 1⁄4 inches thick serving as support to the pannels.
  • Anodized aluminum head guide available in dark brown (standard), silver (optional) or white (optional).
  • Compression weatherstripping system, frame and head (tan colored).
  • 2 1/4 inches thick, laminated solid Ponderosa clear pine door panels with a protective sealant.
  • Panels assembled and strengthened with 5/8 X 4 inches dowels.
  • Peripheral weatherstripping ensures optimal airtightness for heat and soundproofing, all the while preventing air and water infiltration.
  • Depending on the configuration, both the casement panel and tilt-turn options are easy to use, since they exist independently from the foldable panels.
  • Our standard: tempered double glazing at 1 inch (25 mm) thick with Low-E window film, argon gas and a high performance warm edge spacer.
  • Optional: tempered triple glazing at 1 1/4 inch (32 mm) thick with the same characteristics as previously mentioned for the tempered double glazing.
  • Multi-point locking system with a handle that controls the lock to the sill, frame and head. Depending on the configuration, the handle can be installed on the main panel, the casement or the tilt and turn window. Available colours: dark brown (standard), silver (optional) or white (optional)
  • The panels’ weight is fully supported by the rail system on the ground, ensuring smooth, gentle gliding.
  • Adjustable hinges and trucks allowing to adjust the door panels.
  • High-performance champagne-colored doorsill with a unique design and with PVC thermal break.



Options

  • Triple glass
  • Retractable screen
  • Choice of exterior finishing mouldings
  • Variety of models and different configurations of simulated divided lites
  • Possibility of large dimensions
  • Aluminum cladding and unlimited choice of colours



WHAT IS PONDEROSA PINE?

Ponderosa pine also known as “Western Yellow Pine”, is the largest of the western pine species which grows in the southern interior of British Columbia and in California. Having a straight trunk and usually growing up to 25 to 30 metres tall with a diameter of 2 metres, it is a large-crowned tree.

The wood is generally straight-grained and uniform in texture. Common uses of ponderosa pine include furniture; window and door sashes, mouldings, and frames; panelling and shelving.



WOOD COMPARISONS :

Wood species Air dried (20% moisture) – Density
Ponderosa Pine 449 kg/m³
Northern White Pine 400 kg/m³
Douglas Fir 481 kg/m³



*Sources : Engineeringtoolbox.com, Naturallywood.com

Configurations

OPENING DIRECTIONS AND MODELS - FOLDING DOORS

Here are the many configurations we have available.

The number of panels depends on the width of the opening, ranging from a minimum of 70 7/8 inches (1 800 mm) to a maximum of 184 1/8 inches (4 676 mm), which measures to the outside of the frame.

We can also create custom-made models for your high-end projects.

Sens-Ouverture-Portes-Pliantes-Bois
Modeles-Portes-Pliantes-Bois

Note : The addition of sidelites is optionally offered.

Aluminum cladding



Our aluminum cladding

Easy to care for and robust in the long-term, our aluminum cladding offers aesthetics while simultaneously matching your Martin’s wood products. The thickness of our extrusions is largely superior to the aluminum sheet offered on the market which provide you with a maximum durability and an increased protection of your wood.

ALUMINUM EXTRUSION:
DURABILITY AND EASE OF MAINTENANCE

  • Combines the solidity of exterior cladding with the nobility of interior wood.
  • The thickness of our extrusions is far superior to that of sheet aluminum on the market
  • Easy to maintain and corrosion-resistant
  • Recyclable: an asset for the environment



Paint colours - Martin's Inspiration

Like everything else we produce, our painting process is highly controlled and rigorous.

Our extrusions are painted with 3 coats of high-quality acrylic polyurethane paint. Our baked-on paint gives optimum results in terms of appearance, durability and corrosion resistance.

We apply the paint before assembling our products, which enhances the quality of the finish. Our paint recipes are meticulously designed and engineered for impeccable precision, using environmentally-friendly ingredients.



Unlimited choice of colours

Our colorists can also develop the colour of your choice from the name and colour code of a recognized paint manufacturer, or from a colour sample. This gives you the freedom to let your imagination run wild. Here's an overview of our aluminum colours:







322

Bright red

430

Pure white

502

Ivory

506

Smoke

508

Sand

514

Cashmere

523

Coal

525

Black

536

Graphite

538

Coffee

540

Vanilla

542

Ocean blue

547

Sandy

554

Waltnut-brown

556

Forest green

559

Khaki

562

Commercial brown

5P3

Expresso

5P5

Graphite

5P6

Iron ore

The colours may slightly vary; these are presented for reference purposes only.

Stain colours

Finish equal to that of high-end furniture

Stain colours - Martin’s Inspiration

Applying a stain before assembling your windows and doors is not only a way to remarkably protect the wood, but also a great method to highlight its unique richness and beauty.

Being a natural, warm and versatile material, the resistance and durability of the wood will considerably be enhanced by the application of one of our rich and durable stains.

Factory applied, our stain is then protected by coats of protective varnish providing a level of quality that is simply flawless!



Our 15 exceptional translucent stain colours

Here is a glimpse of our shades:



3450 - T8

Black walnut

24 - T3N

Butternut

1134 - T4N

Caliwood

1210 - T17N

Chesapeake Grey

T16N

Dark knight

17 - T6

Expresso

T9

Golden brown (Martin)

16 - T5

Golden Harvest

1107 - T1N

Golden wheat

57 - T14N

Mahogany

28 - T11

Portobello

73 - T15

Red mahogany

3420 - T7

Red Oak

34 - T12

Teak

70 - T13

Walnut

The colours may slightly vary; these are presented for reference purposes only.



ENHANCES AND PROTECTS THE BEAUTY OF WOOD

Wood is a noble, warm and versatile material. Carefully protected by a quality stain, its resistance and durability are enhanced.



UNRIVALLED PROTECTION AGAINST WEATHERING AND UV RAYS

Our stain creates a veritable shield. The natural oils and resins in this stain infiltrate the wood's cellular structure to form a long-lasting protective barrier.



WATER-BASED STAIN: ANOTHER STEP TOWARDS PROTECTING THE ENVIRONMENT

By introducing water-based stain products, Martin is a forerunner in its ongoing efforts to support sustainable development.

Door sill

A UNIQUE DESIGN ON THE MARKET

With its double water evacuation system and reinforced PVC insulating section, this door’s performance remains unmatched in the industry.

This sturdy, watertight sill is cladded with champagne coloured anodized extruded aluminium, sure to blend with all our paint and cladding colours.

Assured peace of mind since this sill can withstand strong winds going up to 260 Pascals (Pa).



ANODIZED STEEL DOOR SILLS



Champagne

Dark Bronze


Energy efficient glass



A superior energy performance!

In addition to the Energy Star® standard, which is used to assess the energy performance of your windows and doors, we also recommend that you consult the harmonized North American Fenestration Standard (NAFS), more commonly referred to as "structural performance testing".

The NAFS standard evaluates a window or door's resistance to climatic elements such as wind, as well as its air and water tightness.

In Canada, the minimum requirements of this standard are specified according to your locality, and are based precisely on your region's climatic conditions.

Before purchasing your product, we strongly suggest that you validate the minimum performance category (PC) required by both your geographical location and the immediate surroundings of your home (location, product height, type of terrain, etc.).

Find your minimum PC easily with Fenestration Canada's Performance Calculator.



COMBINING AN INNOVATIVE GLASS UNIT AND AN ULTRA-EFFICIENT SPACER

To reduce energy consumption, Martin uses as standard energy efficient Low-E glass (4.2) with Argon gas combined to an air-tight spacer. Many of our products are ENERGY STAR® approved.



ADVANTAGES

  • Reduces heat loss in winter
  • Keeps the interior cooler in the summer
  • Reduces heating and air conditioning costs between 5% and 15%
  • Prevents textile surfaces discoloration
  • Helps to keep a balanced humidity level in the house
  • Reduces condensation risks on the glass surface



INSULATING GLASS

The Sungate® 400 Low-E and argon energy efficient glass unit increases your comfort in many ways. This superior quality glass keeps you warm during winter’s cold nights and cool during the hot summer days. While allowing in the benefits of natural light, it also ensures a high level of energy efficiency.



SPACER

The best warm edge spacer in the world:
Swisspacer Ultimate
It has the best thermal value in the world with a 20% reduction in thermal conductivity compared to the best product currently available on the market.

Simulated divided lites

For a distinctive style and a very special design, add wood or aluminum simulated divided lites on both sides of your sealed units. Our contemporary and traditional models will be a wonderful complement to your products specially crafted according to your personal choice of sizes and configurations.



TRADITIONAL
- 7/8 and 1 9/16 inch in natural wood
- 7/8 and 1 9/16 inch in aluminum extrusion

CONTEMPORARY
(PUTTY GLAZE)
- 7/8 inch in natural wood
- 7/8 inch in aluminum extrusion

CONTEMPORARY
(SQUARE AND FLAT)
- 7/8 and 1 9/16 inch in natural wood
- 7/8 and 1 9/16 inch in aluminum extrusion

Mouldings

Embellish your Martin’s windows and doors by adding finishing mouldings. Several options are now available: wood mouldings or extruded aluminum mouldings. Of various sizes, shapes and designs, they will complement perfectly your Martin’s creations.



1 3/4 inch
TRADITIONAL

3/4 inch
TRADITIONAL

3 1/2 inches
TRADITIONAL

1 3/4 inch
CONTEMPORARY

Hardware

CONTEMPORARY BALL BEARING HINGE

Colours:

Satin nickel · Black · Dark bronze · Polished brass · Antique brass · Pewter · Satin chrome

CONTEMPORARY HANDLE

Colours:

Stainless steel

TRADITIONAL BALL BEARING HINGE

Colours:

Polished brass · Antique brass · Pewter · Satin chrome · Satin nickel · Black · Dark bronze

TRADITIONAL HANDLE

Colours:

Black · Dark bronze · White

Hardware colours available for these products

Antique brass

Black

Dark bronze

Pewter

Polished brass

Satin chrome

Satin nickel

Stainless steel

White

Performance

ENERGETIC AND STRUCTURAL PERFORMANCE

ENERGY STAR® AND NAFS STANDARDS

When evaluating energy performance ratings for your doors and windows, in addition to adhering to Energy Star®’s standards, it is important to refer to the harmonized standard set by the North American Fenestration Standard (NAFS). The NAFS specification is more commonly known under the name of “structural performance tests.”

As well as evaluating air and water tightness, the NAFS standard evaluates a door or window’s resistance to natural elements such as strong winds.

In Canada, the standard’s minimum requirements are determined according to your region and its weather conditions.

Prior to purchase, it is important to confirm the minimum required Performance Grade (PG) for your region and the surroundings of your home (location, product height, type of land, etc.).

Easily get your minimum PG with the Fenestration Canada’s performance calculator.

Here below, our energetic and structural performance results:

Wooden Patio Door - Aluminium-Cladding-Exterior

Glazing

DISTINCTIVE GLASS CHOICES

LET THE LIGHT INSPIRE YOU

Martin Windows and Doors offer a wide variety of glasses and distinctive stained glasses that can both bring elegance to your door and create an atmosphere in your home.



STAINED GLASS

Choose a door with stained glass and add a little touch of fantasy with a private, semi-private or clear finish.*



THERMACRYSTAL

This new molding process produces designs with complex, pure lines and allows for the reproduction of different glass textures.*



SILKSCREEN

This family of products is characterized by a process that applies ink to the glass surface, giving it a decorative appearance while maintaining your privacy.*



TEXTURED OR V-GROOVED

Our grooving process uses an engraving technique on sandblasted or glue chip tempered glass, allowing in light while maintaining your privacy.*





* Many possible configurations.

VIRTUAL VISIT

Want to see more?

Take a look at our brochure featuring all our wood products, crafted with care and passion...

DOWNLOAD OUR BROCHURE
